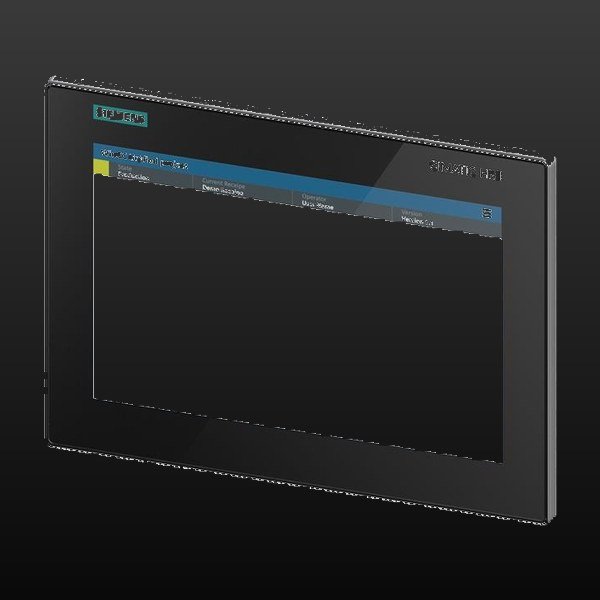

SIMATIC HMI MTP1200 Unified Comfort Panel, 12.1-inch Multi-Touch, PROFINET, MRP (6AV2128-3MB06-0AX0) CAN Electric — Industrial Automation Parts Supplier

The TP1200 successor class on the Unified platform

At 12.1 inches and 1280 x 800 pixels this is the panel that replaces the classic 12-inch Comfort devices conceptually: same role at the line station, new runtime. Compared with the MTP1000 it adds the larger display and MRP media-redundancy support; the MTP700 covers the small end of the same platform.

Mind the opening: the cutout is not the TP1200 cutout

The MTP1200 mounts in a 310 x 221 mm opening, while the classic TP1200 Comfort uses a different cutout — so a door that took a TP1200 needs measuring before an MTP1200 is ordered. Portrait or landscape mounting and a 35° tilt limit round out the mechanical picture.

Data per the Siemens product documentation and catalogue entry; confirm the current data sheet before cutting an opening or sizing a supply.

MRP support makes the panel ring-ready

Of the three Unified Comfort sizes in this batch, the MTP1200 explicitly supports media redundancy — the panel joins an MRP ring so a single cable fault does not drop the station. On lines where the visualization is production-critical, that line item belongs in the network design, not the wish list.

Two SD slots change the backup story

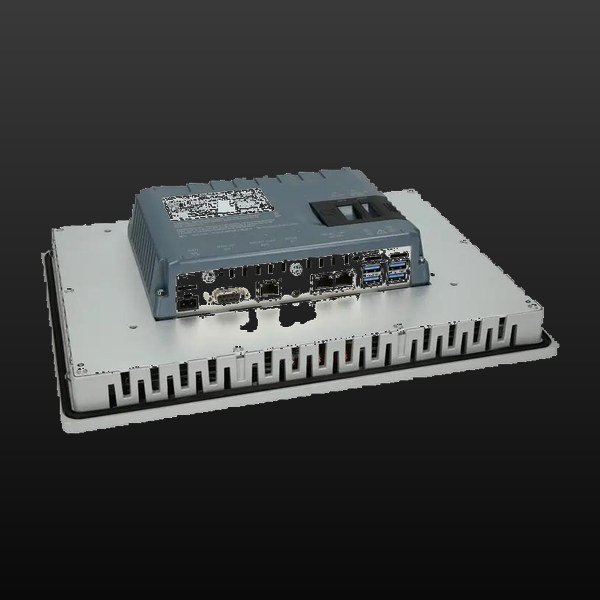

With 2 x SD alongside the four USB 3.1 ports, project archives and logs can be split from service media — small detail, frequent relief during commissioning and service visits.

Choose by station role: MTP700 for cell-level HMI, MTP1000 as the 9-inch migration target, MTP1200 where the line station wants the biggest Unified display and MRP-capable networking.

Engineered with WinCC Unified Comfort from V16 and connected over PROFINET with a combined RS422/485 port for serial legacy links. Classic TP1200 Comfort projects are rebuilt in Unified, and the 310 x 221 mm cutout is checked against the existing door before ordering. The MTP1000 and MTP700 cover the smaller Unified sizes.

• Email sales@can-electric.com with the order number, quantity, delivery country, and whether the unit replaces a failed one or stocks a spare.
• State the condition you need — new, new-surplus or refurbished is written on the quote, never implied.
• Prices are USD and ships go out from Hong Kong by DHL; availability is confirmed per order rather than taken from a catalogue status.
