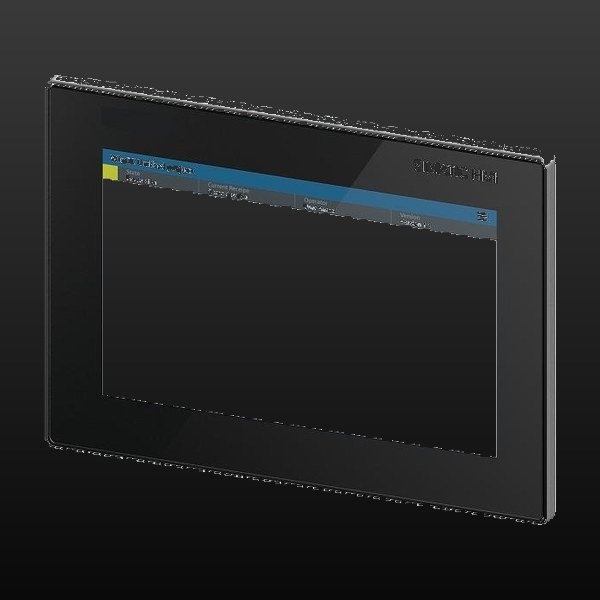

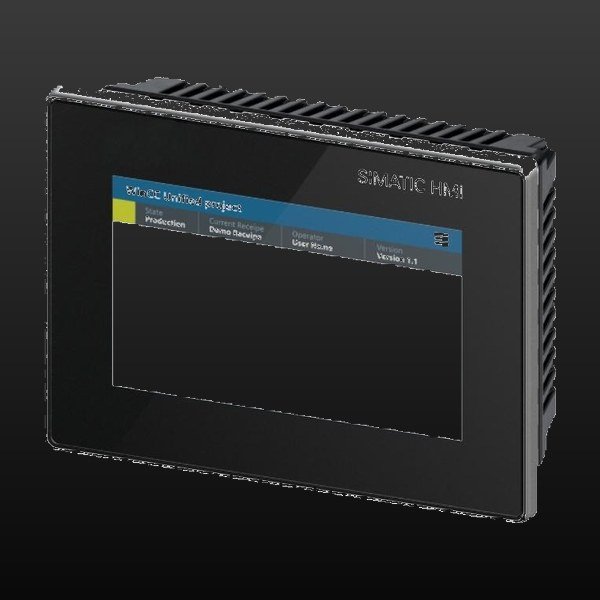

The Siemens SIMATIC HMI MTP1000 Unified Comfort (6AV2128-3KB06-0AX0) is a 10.1-inch widescreen Unified Comfort Panel with projected-capacitive multi-touch and no keys, 16M colours, PROFINET. It runs SIMATIC WinCC Unified (V16+) — not WinCC Comfort — so it cannot open classic Comfort projects. New original, quoted per order, ships in 24h by DHL (3–7 days).
The SIMATIC HMI MTP1000 Unified Comfort (order number 6AV2128-3KB06-0AX0) is the 10.1-inch member of the Unified Comfort line — and the panel the 9-inch Comfort generation grows into, because the Unified range simply skips the 9-inch size. Its 1280 x 800 multi-touch front runs the full WinCC Unified platform.
Key Facts
| Brand / Family | Siemens — SIMATIC HMI Unified Comfort Panels |
|---|---|
| Order Number | 6AV2128-3KB06-0AX0 (0AX0 delivery; 0AX1 release as successor) |
| Operation | Capacitive multi-touch, no mechanical keys |
| Display | 10.1-inch widescreen TFT, 1280 x 800 px, 16.7 million colors |
| Interfaces | 2 x Industrial Ethernet (2-port switch + independent port), RS422/485, 4 x USB 3.1 Type A |
| Engineering | WinCC Unified Comfort from V16 (TIA Portal); Linux-based Unified platform |
| Mounting | Portrait or landscape; IP65 front; max inclination 35° without forced ventilation |
| Supply | 24 V DC (19.2 – 28.8 V) |
| Lifecycle | 0AX0 catalogued as spare part; 0AX1 delivery listed as successor |
What the MTP1000 Unified Comfort Is
There is no 9-inch Unified panel — this is where 9-inch goes
The Unified Comfort line jumps from 7 to 10.1 inches. For plants replacing TP900 or KTP900 Comfort devices, Siemens routes the migration to the MTP1000: same platform story as the MTP700, with a 16:10 panel of 1280 x 800 pixels replacing the old 9-inch 800 x 480 — more pixels and more area, not a like-for-like swap, so the opening and the screens are planned together.
Same platform, same project logic
A WinCC Unified project is re-targeted between Unified Comfort sizes without rebuilding the engineering approach, so a fleet can mix MTP700, MTP1000 and MTP1200 freely once the runtime decision is made.
MTP1000 Unified Comfort — Technical Specifications
| Item | Specification |
|---|---|
| Display | 10.1-inch widescreen TFT, 1280 x 800 px, 16,777,216 colors, backlight MTBF 50,000 h, dimmable 5 – 100 % |
| Operation | Capacitive multi-touch screen; on-screen keyboards; acoustic buzzer |
| Interfaces | 2 x Industrial Ethernet (2-port switch + 1 independent port); 1 x RS422/485 combined; 4 x USB 3.1 Gen 1 Type A |
| Protocols | PROFINET; OPC UA; web client (HTTP/HTTPS); WinCC Unified runtime services |
| Engineering software | WinCC Unified Comfort from V16 (TIA Portal); Linux-based Unified platform |
| Supply | 24 V DC, permissible 19.2 – 28.8 V |
| Mounting | Portrait or landscape; max inclination 35° without external ventilation; IP65 front |
| Dimensions | 280 x 205 x 64 mm (W x H x D) |
| Weight | 2.759 kg; commodity code 85371098 |
Data per the Siemens product documentation and catalogue entry; confirm the current data sheet before cutting an opening or sizing a supply.
The 9-inch Question, Answered by the Range Itself
Plan the opening with the migration, not after it
A 9-inch classic Comfort panel and a 10.1-inch Unified panel do not share a cutout, and the aspect ratio changes from 16:9 to 16:10. Treat the MTP1000 swap as a small mechanical project — new opening or adapter plate, door check, cable reach — not as a drop-in replacement, and the retrofit runs to schedule.
Every Unified size behaves identically
Runtime limits, web client, OPC UA and diagnosis are the same as on the 7-inch and 12.1-inch siblings; the only variable a project team chooses here is how much glass the operator gets.
MTP1000 Between Its Siblings
| Characteristic | MTP700 (3GB06) | MTP1000 — this page | MTP1200 (3MB06) |
|---|---|---|---|
| Display | 7-inch, 800 x 480 | 10.1-inch, 1280 x 800 | 12.1-inch, 1280 x 800 |
| Replaces (class) | 7-inch Comfort | 9-inch Comfort | 12-inch Comfort |
| Net weight | About 1.4 kg | 2.759 kg | About 2.8 kg |
| Ethernet | 2-port switch + independent | Same | Same, MRP supported |
| Platform | WinCC Unified from V16 | Same | Same |
| Cutout planning | New opening vs classic 7-inch | New opening vs classic 9-inch | 310 x 221 mm vs TP1200 opening |
The MTP1000 exists because Unified skips 9 inches: it is the correct target for TP900/KTP900 migrations, with the mechanical delta planned openly instead of assumed away.
Compatibility and How to Order
Engineered with WinCC Unified Comfort from V16, connected over PROFINET with a combined RS422/485 port for serial legacy links. Classic 9-inch Comfort projects move to the MTP1000 by rebuild in Unified; the MTP700 and MTP1200 bracket it at 7 and 12.1 inches.
- Email sales@can-electric.com with the order number, quantity, delivery country, and whether the unit replaces a failed one or stocks a spare.
- State the condition you need — new, new-surplus or refurbished is written on the quote, never implied.
- Prices are USD and ships go out from Hong Kong by DHL; availability is confirmed per order rather than taken from a catalogue status.
Frequently Asked Questions
Is there a 9-inch Unified Comfort panel?
No. The Unified range goes 7, 10.1, 12.1 inches and up — the MTP1000 is the panel Siemens positions for the 9-inch Comfort world.
Can a TP900 Comfort project be loaded onto it?
No. Unified projects are built in WinCC Unified; classic Comfort screens are rebuilt, not converted one to one.
Does the MTP1000 fit a TP900 cutout?
No — different diagonal and aspect ratio (16:10 versus 16:9). Plan a new opening or adapter plate as part of the migration.
What is the difference between 0AX0 and 0AX1?
Delivery state of software and media, not hardware: Siemens lists the 0AX1 delivery as successor and catalogues this 0AX0 unit as a spare part. Confirm the suffix your records expect.
Does it have physical keys?
No — capacitive multi-touch only; add a KP8 or KP32 key module on PROFINET where hard keys are required.
How many Ethernet interfaces does it have?
Two: a 2-port internal switch plus one independent port, alongside a combined RS422/485 port.
Which software version is required?
WinCC Unified Comfort from V16 in TIA Portal; the runtime is the Linux-based Unified platform.
What resolution does it run?
1280 x 800 pixels on the 10.1-inch panel — a genuine pixel step up from the 800 x 480 of the classic 9-inch devices.
How heavy is it?
2.759 kg — between the 7-inch MTP700 and the 12.1-inch MTP1200, with the same 64 mm depth class.
Is the hardware genuine, and how do I get a quote?
Genuine Siemens hardware sourced through Siemens-authorized distribution partners; CAN Electric is an independent channel trader, not Siemens and not a factory-authorized distributor. Email sales@can-electric.com with quantity and delivery country.
