The power module designed with the S7-1200

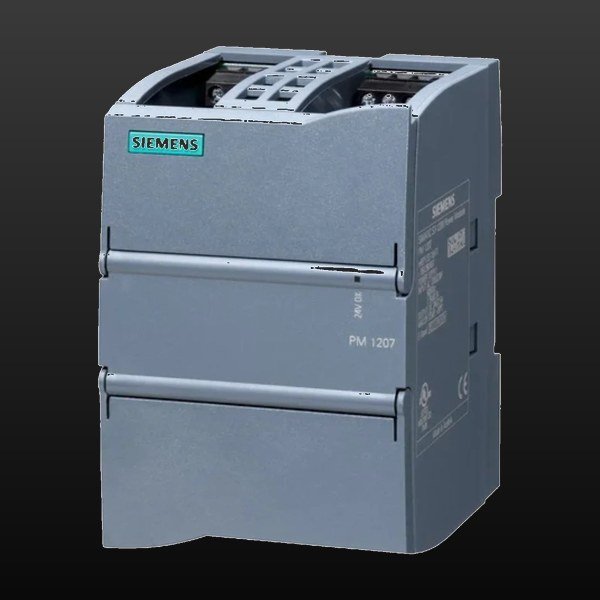

PM1207 is the SIMATIC-design supply for the S7-1200: at 70 mm wide it matches the micro PLC visually and mechanically, mounts on the same DIN rail, and feeds CPUs with 24 V input, signal modules and other connected loads. Automatic range selection connects it to 120 V or 230 V single-phase networks without any configuration.

Stabilized, isolated 24 V output

The controlled, isolated output delivers 2.5 A / 60 W with a maximum residual ripple of 150 mV and an overall tolerance of plus/minus 3 percent, bridging supply dips for more than 20 ms. Electronic short-circuit and overload protection guard the downstream loads, and a green LED signals a healthy 24 V output.

Certified for panel and export use

Screw terminals, DIN-rail or screw mounting and an IP20 enclosure suit standard control cabinets, while cULus (UL 508), ATEX II 3G Ex nA II T4, cCSAus Class I Division 2 and marine GL approvals carry the module into export machinery and shipboard panels.

Data per the Siemens catalogue entry and product documentation; confirm the current data sheet before mounting the module or sizing the 24 V load.

Matched to the micro PLC

The 70 mm SIMATIC design lines up with the S7-1200 on the same mounting rail, so controller and supply form one compact unit instead of a mismatched panel layout.

Global grid compatibility

Automatic range selection covers 120 V and 230 V networks (85…132 V / 170…264 V) at 47…63 Hz, with input current limited to 13 A on switch-on – no tap setting or pre-charging on site.

Export-ready certification set

cULus to UL 508, ATEX II 3G Ex nA II T4, cCSAus Class I Division 2 and marine GL approvals ship with the module, which shortens panel approval for machinery built for North America, hazardous locations and marine duty.

PM1207 is the supply matched to the S7-1200; PM1507 pairs with the S7-1500, while the SITOP PSU100S, PSU100D and PSU100C lines cover standard, flat and slim duties for general 24 V cabinets.

Engineered for SIMATIC S7-1200, the PM1207 supplies CPUs with 24 V input, signal modules and connected loads, and is listed by Siemens as an active product (PM300). The SIMATIC PM1507 (6EP1332-4BA00) is the S7-1500 equivalent, and the SITOP PSU100S, PSU100C and PSU100D lines cover general-purpose 24 V duties.
