Two independent 24 V counters in one 35 mm module

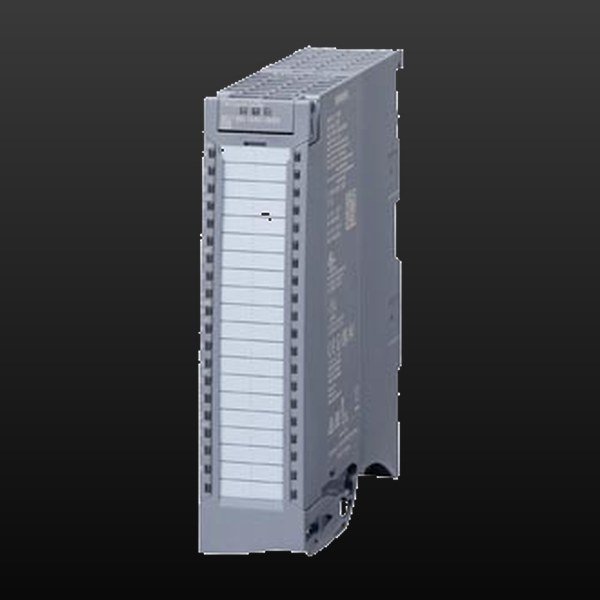

The 6ES7550-1AA01-0AB0 is the TM Count 2x24V counter module of the SIMATIC S7-1500 and ET 200MP technology module range. Each of its two channels connects a 24 V incremental encoder with A/B tracks (90° phase offset, with or without zero track N) or a pulse encoder — pulse with direction, or one pulse signal per count direction — and counts on a 32-bit counter with a parameterizable counting range.

Per-channel inputs, outputs and comparators

Each channel brings three parameterizable digital inputs for gate start/stop, capture, synchronization, probe or a freely usable function, and two transistor digital outputs switched by the channel comparators (two comparators per channel) or used as freely usable outputs. The module supports continuous counting, event-controlled stop, hardware and software gates, synchronization via digital input, and frequency, cycle-duration and velocity measurement with 100 ppm accuracy.

Technology object engineering

The module is operated with the High_Speed_Counter technology object in STEP 7 (TIA Portal), supports isochronous mode, diagnostic and hardware interrupts, and carries I&M0 to I&M3 identification data. Firmware V2.0 can be updated in the field.

Data per the official Siemens Equipment Manual and TIA Portal manual collection for TM Count 2x24V (6ES7550-1AA01-0AB0); confirm the current Siemens data sheet before ordering large quantities.

Fast 24 V counting without a separate counter module

Two independent counters up to 800 kHz with quadruple evaluation keep position and speed acquisition inside the S7-1500 station, avoiding an external high-speed counter in the cabinet.

Comparators drive the outputs directly

Two comparators per channel switch the module’s own digital outputs when a count value is reached, so threshold signals react at module level rather than waiting for a program cycle.

Flexible encoder and sensor wiring

Source, sink and push-pull 24 V encoders connect directly; the common short-circuit-proof 24 V encoder supply feeds both channels, and the parameterizable input filter suppresses interference from long sensor cables.

Diagnostics and interrupts at channel level

Supply-voltage, wire-break, short-circuit and A/B transition-error monitoring with parameterizable diagnostic and hardware interrupts bring encoder faults straight into the controller program.

For RS422 / TTL incremental or SSI absolute encoder position acquisition, ask about the TM PosInput 2; for time-stamped digital I/O, PWM and oversampling, ask about the TM Timer DIDQ range.

Speed and position acquisition on 24 V encoders

Conveyor speed, shaft revolutions, flow meters and packaging-machine position feedback connect to the two channels in machine builders’ plants and retrofits running on S7-1500 or ET 200MP.

Threshold switching and measurement tasks

Comparator-driven outputs, capture inputs, frequency and cycle-duration measurement suit sorting stations, rotary tables and feed axes that need fast reaction at the module level — the same controller behind the HMI hardware listed in the Related Siemens HMI Products block below.
