A 4-channel analog output module for ET 200SP

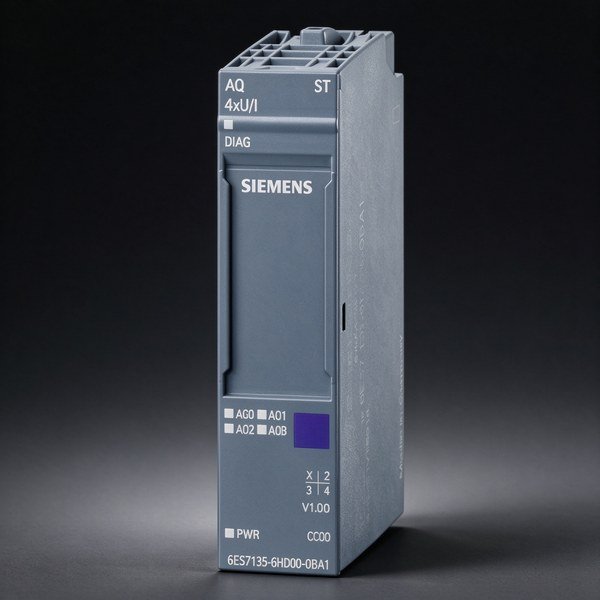

The 6ES7135-6HD00-0BA1 is the AQ 4xU/I ST analog output module from the SIMATIC ET 200SP family. It provides four channels that can each be set as a voltage or current output, giving one module for driving actuators, recorders and analog set-points.

Wide industrial output range selection

Current outputs cover ±20 mA (16-bit incl. sign), 0-20 mA and 4-20 mA; voltage outputs cover ±10 V, ±5 V, 0-10 V and 1-5 V — each switchable per channel with 16-bit-class resolution.

Diagnostics and reliability

Configurable diagnostics (no supply L+, short-circuit, overflow, underflow, wire break), reaction to CPU STOP (turn off / keep last value / substitute value) and electrical isolation from L+ support dependable closed-loop control.

Data per the official Siemens Equipment Manual AQ 4xU/I ST (6ES7135-6HD00-0BA1); confirm the current data sheet before ordering large quantities.

Voltage and current output on one module

Each of the four channels can be configured as a voltage output (±10/±5/0-10/1-5 V) or a current output (±20/0-20/4-20 mA), so one module covers most analog control loops.

High-resolution, low-error output

16-bit-class resolution including sign with a product accuracy of ±0.3% and linearity error of ±0.03% delivers precise set-point control.

Safe reaction to CPU STOP

On CPU stop the outputs can be turned off, keep the last value, or apply a substitute value, protecting the process when the controller fails.

Compact ET 200SP footprint

A 15 mm single-width module on BU type A0/A1 base units (colour code CC00) — a space-saving fit for distributed I/O stations.

For higher channel counts or higher-feature (HF) analog outputs, ask about the AQ 2xU/I and AQ 4xU/I HF ranges for ET 200SP.

Distributed analog set-point output

In ET 200SP I/O stations it drives analog actuators, valves, drives and recorders with voltage or current signals for the controller over PROFINET or PROFIBUS DP.

Process and machine automation

Typical in process and machine plants where analog outputs feed control loops, final control elements and HMI displays — the same infrastructure role as the HMI hardware in the Related Siemens HMI Products block below.

Condition stated in writing

We are an independent channel trader, not Siemens and not a factory-authorized distributor. Every unit supplied is genuine new, and that condition is written on every quote.

Stock you can plan a project around

We trade a broad Siemens SIMATIC and ET 200SP inventory; the Related Siemens list on this page shows live USD list prices with EXW Hong Kong terms, and each quote states the exact quantity available.

Export handled on one thread

Cross-border requests are routine: a single thread covers quote, compliance note and dispatch, so buyers in India, Egypt, the Netherlands, Thailand, Malaysia, the Middle East and South America deal with one team.

The AQ 4xU/I ST snaps onto a BU type A0 / A1 base unit (colour code CC00) in an ET 200SP station and talks to the controller through the interface module over PROFINET or PROFIBUS DP. It is configured in STEP 7 (TIA Portal) V14 or higher / STEP 7 V5.6 or higher.

• Email sales@can-electric.com with the order number 6ES7135-6HD00-0BA1, quantity, delivery country, and whether you also need a matching base unit (BU A0/A1) or interface module.

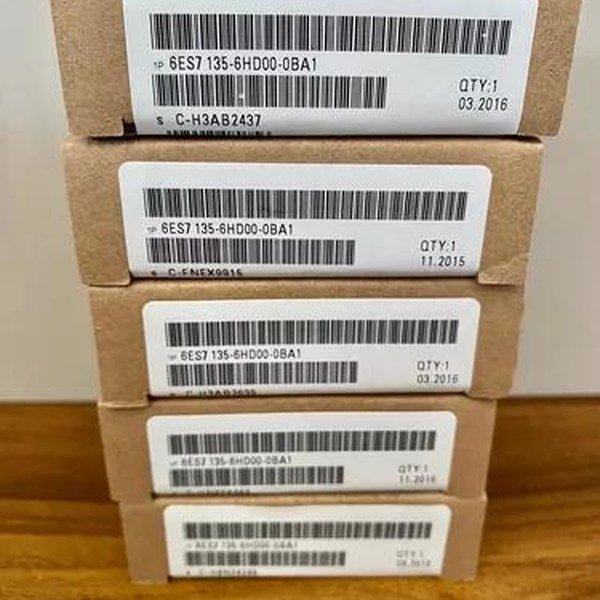

• Prices are in USD, shipped from Hong Kong by DHL under EXW terms; units from current stock ship factory-sealed.
• Need an analog output cable, base unit or ET 200SP interface module? Ask for them on the same request.
