The compact S7-1500 CPU with built-in signal hardware

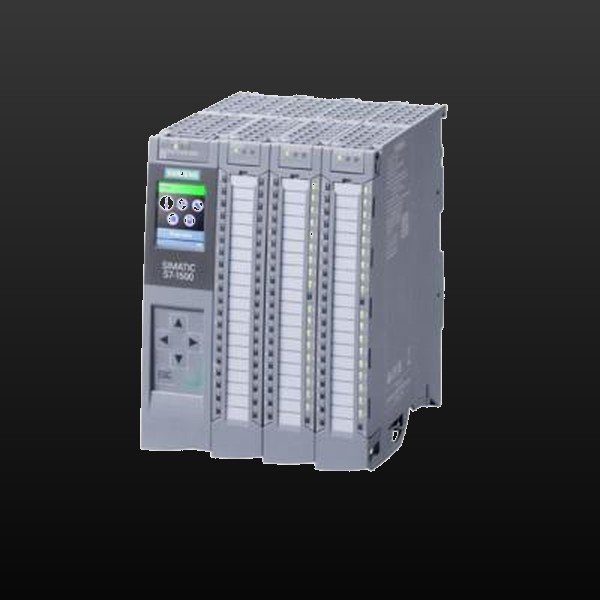

The 6ES7512-1CM03-0AB0 is the CPU 1512C-1 PN, a compact CPU of the SIMATIC S7-1500 range. On one 110 mm module it combines the controller with its own signal electronics: 32 digital inputs, 32 transistor digital outputs, 5 analog inputs (4 x U/I plus 1 x R/RTD) and 2 analog outputs (U/I), so a compact machine can run from the CPU alone before any additional I/O module is added.

Integrated technology functions for small motion and counting duties

Six high-speed counters (up to 400 kHz with quadruple evaluation), four fast outputs for pulse train output (PTO), pulse-width modulation (PWM) and frequency output, encoder inputs and PID control loops run inside the CPU — configuring them with the technology objects of TIA Portal avoids a separate counter or motion controller for small machines.

Current catalog product with a status display

Siemens lists the 6ES7512-1CM03-0AB0 as an active product (PM300). It carries a 3.45 cm front status display, an integrated PROFINET interface with a 2-port switch and IRT support, and requires a plug-in SIMATIC Memory Card for the user program.

Data per the official Siemens Industry Mall product page and the official Siemens CPU 1512C-1 PN data sheet for 6ES7512-1CM03-0AB0; confirm the current Siemens data sheet before ordering large quantities.

One module replaces CPU plus a stack of signal modules

The 32 DI, 32 DO, 5 AI and 2 AO on board cover the typical I/O list of a compact machine, cutting cabinet width, wiring points and spare-part variety before any expansion module is added.

Counting, PTO, PWM and frequency output on the CPU

Six high-speed counters up to 400 kHz and four fast PTO/PWM/frequency outputs drive small actuators and encoders; speed-controlled and positioning axes, cams and PID loops are configured as technology objects in TIA Portal.

IRT-capable PROFINET with an integrated 2-port switch

The X1 interface carries two RJ45 ports with an internal switch, so deterministic drive traffic and the plant network share one CPU interface without an additional communications module.

Diagnostics at the module front

The 3.45 cm status display, RUN/STOP, ERROR and MAINT LEDs and the integrated web server put operating state, diagnostics and network settings on hand without extra engineering tools.

Need a smaller compact CPU with 16 DI / 16 DO, or a fail-safe variant of the S7-1500? Ask for the current article numbers and current status on the same request.

Compact machines with a fixed I/O list

Packaging machines, filling stations, small assembly cells, conveyor drives and compact standalone equipment where 32 inputs and 32 outputs plus a few analog signals cover most of the machine — logic, counting, PWM and encoder evaluation share one CPU.

Retrofits and machines on a tight cabinet budget

Where an existing S7 machine keeps most of its signal list, the compact CPU saves a module slot and front-connector order — the same plant that visualizes on the HMI hardware listed in the Related Siemens HMI Products block below.

Condition stated in writing

We are an independent channel trader, not Siemens and not a factory-authorized distributor. Every unit supplied is genuine new, and that condition is written on every quote.

Stock you can plan a project around

We trade a broad Siemens SIMATIC S7-1500 inventory; the Related Siemens list on this page shows live USD list prices with EXW Hong Kong terms, and each quote states the exact quantity available.

Export handled on one thread

Cross-border requests are routine: a single thread covers quote, compliance note and dispatch, so buyers in India, Egypt, the Netherlands, Thailand, Malaysia, the Middle East and South America deal with one team.

The CPU 1512C-1 PN mounts on the S7-1500 mounting rail in the compact 110 mm format and is configured in STEP 7 (TIA Portal). A SIMATIC Memory Card is required for operation and is quoted separately; the push-in front connector is already included in the delivery.

• Email sales@can-electric.com with the order number 6ES7512-1CM03-0AB0, quantity, delivery country, and whether you also need a SIMATIC Memory Card for the required capacity.
• Prices are in USD, shipped from Hong Kong by DHL under EXW terms; units from current stock ship factory-sealed.
• Expanding the station? Ask for matching S7-1500 digital, analog and technology modules on the same request.
